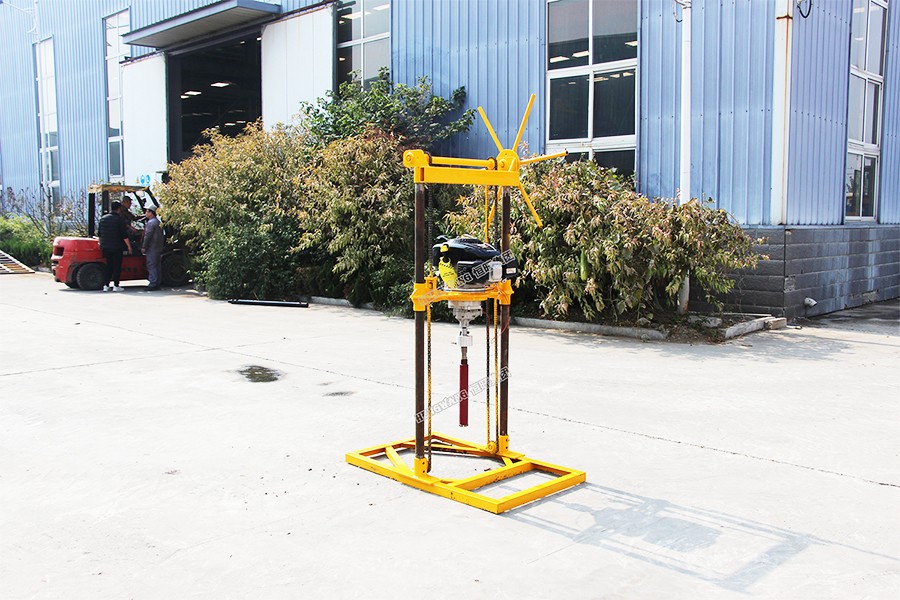

HW-B30 is a kind of small portable sampling drilling equipment which is mainly suitable for mountain, transportation and energy. The machine can replace the traditional manual excavation, tank probe, take samples and so on.
It not only more efficient, but also reduces vegetation damage and protects the environment.
It is an indispensable technical means in shallow geological exploration, such as regional geological mapping, geophysical exploration sampling, ancient geomagnetic sampling, and geological disaster prevention.
Application fields: geophysical exploration sampling, regional geological mapping, mining vein exploration, mineral exploration, geotechnical engineering testing, various drilling.
Model | HW-B30 |
Borehole diameter (mm) | φ40—φ108mm |
Drill hole depth (m) | 30m (diameter 40mm) |
Application of rock types | Soil, medium hard (10grade) |
Rotation speed | 2200r/min |
Water consumption (L/H) | 14.4L/H |
Power (cc) | 173cc |
Rod rotation speed (r/min) | 0-800 |
Due to the continuous update and progress of technology, the difference between the technical parameters and configuration and the actual product is subject to the actual delivery.
Submit the form to get the latest parameters and quotations.
